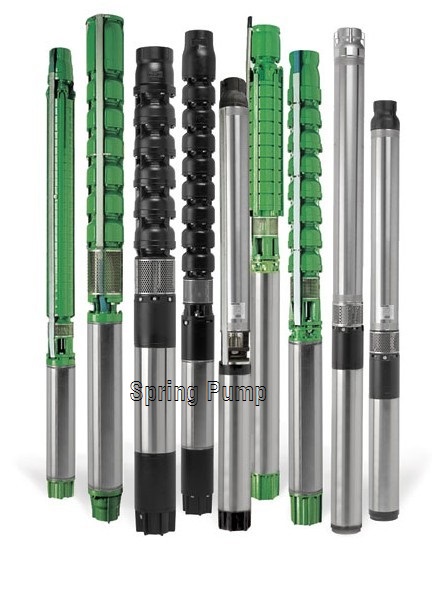

Submersible Borehole Pump

Application:

Portable water transportation

Agriculture irrigation

Sprinkling and fountain

Fire fiighting

Industrial cooling water circulation

Mining

Performance Range:
Capacity: 5-2200 m3/h
Head: 2-1500m
Temperature: 5-120 degree
Speed: 2900rpm/3500rpm
Power: 3-2400Kw
380v/660v/1140v/3kv/6kv/10kv; 50Hz/60Hz

Material Standard:
Cast iron, S.S304, 316, 316L, Ductile iron, Duplex S.S, Bronze etc.

Medium Range:
Clean water, chilled/cold water, rainwater, underground gushing water of mining, drinking water, mineral water, etc.
Water temperature range: +5 degree~+25 degree
Solid content (mass ratio): ≤0.01%
PH: 6.5-8.5
H2S content: ≤1.5mg/L
Cl- content: ≤400mg/L

Advantage:
Scientific design, high head for single stage impeller, steadily operating and low noise.
Superior cast iron as its raw material, scientific casting method ensures the compactness of the molecular structure of castings.
CNC lathe precision machining ensures parallelism and perpendicularity of all the parts and also the pump’s concentricity, extending its service life.
Rigorous testing, well installation and full load performance test.
The service life of the improved rubber bearing liner (technological secret) is 2 times longer than that of common bearing liner.
Some of our products produced by introducing the Germany Ritz technology, meeting the customers’ needs of high head submersible pump.
