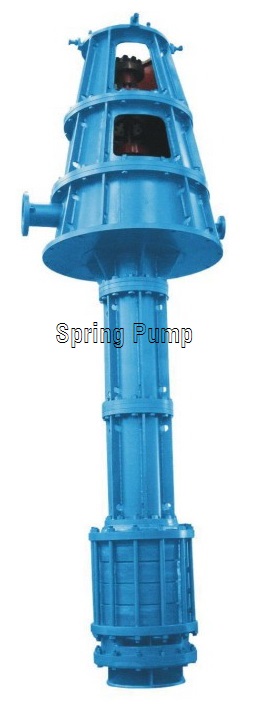

SPVS1 Vertical suspension pump overview
•Pump Type: API610 VS1
•Execution Standard: API610
• Performance range:
•Flow rate Q: 20-1500 m3/h
• Head H: Up to 300 m
• Design temperature T: - 15 ℃ ~ 180 ℃
• Design pressures P: Up to 4.0MPa
Applications
• Clean or contaminated, low or high temperature, chemically neutral or corrosive liquids; especially suitable for conveying inflammable, explosive, easy to vaporize, toxic, low temperature media;
• Refinery, petrochemical, chemical industry, coal chemical industry, power station, photovoltaic power generation, sewage treatment, papermaking and general industrial applications.
• Especially suitable for conveying liquefied gas, methane, ethane, ethylene, propylene, etc.
Product features
SPVS1 vertical pumps are multistage and radial split casing. The first impeller is suction impeller. The axial force is borne by the thrust ball bearing. When the pressure difference increases, the axial force is balanced by the balancing drum device. Bearing lubrication is thin oil lubrication, with an independent internal circulation automatic lubrication system. Hydrodynamic radial sliding bearings are located at the inlet end of the pump. In a certain installation depth, pump shaft with intermediate suction pipe and discharge pipe position in the upper part of the installation flange, into 180 degrees each other. From the driving end, the pump is counterclockwise rotation, can also be manufactured according to customer requirements.
