★ General

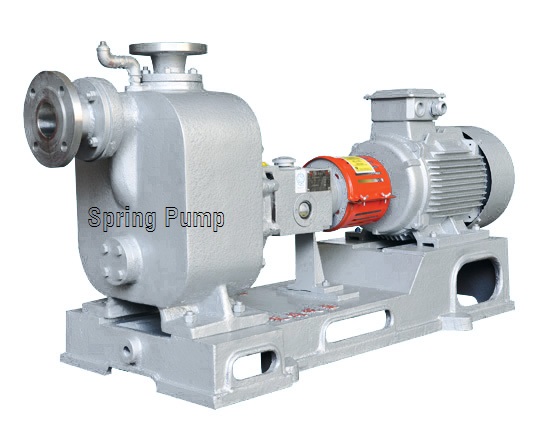

HZX serial horizontal self-priming pumps (single-stage, single-suction , overhung centrifugal pumps) are designed and manufactured according to standard EN ISO 5199:2002.
They have lots of advantages such as high self-priming capability, high reliability, long life , steady work, good cavitations and high efficiency.
★ Performance Range
Pressure: Max.2.5MPa
Head: Max.160m
Temperature: -30 °C-+180 °C
Self Priming: 7-9m
★ Application
Self Priming
Gas Containing Liquid
Foam Containing Liquid
Grain Containing Liquid
★Structure
The upper exhaust passage at center of pump body can prevent air block. A double volute casing reduces radial forces and shaft deflection. Gap dimension between impeller and wearing plate can be adjusted from outside in order to retain constant gap dimension and to maintain continuous high efficiency of pump operation. Open impeller, close impeller or special open impeller can be selected depend on different operation conditions. Impeller is fixed with rotor key in order to obtain a reliable and stable operation. Rotor key is self-locking and reverse rotation safe and enables an easy and quick dismantling and assembly of impeller.
