★ Instruction

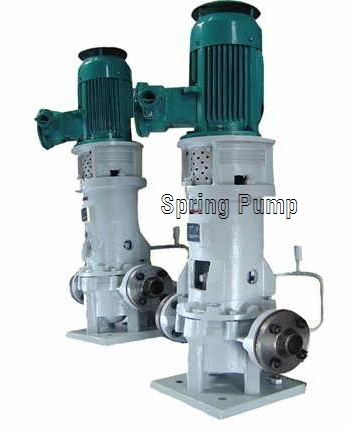

The SPG series is single stage, single suction, radial splitting, vertical centrifugal pipeline pump, which is designed in accordance with standard of API610 and AP1682.
★ Features
The SPG series pump and motor share the shaft with a low height, and well stability. The bearing bracket between pump and motor can be used under high temperature and rigorous applications. Compared to horizontal pump with the same performance, vertical inline pump covers small installation area, easily pipe connecting, save the initial cost.
Impeller, pump casing and cover with interchangeable wear ring, shaft seal with sleeve, easy to maintain, save maintenance spare parts cost.
The pump casing with large than 80mm-diameter (including 80mm) is designed to double volute which can balance the radial force and reduce the vibration, and stable operating.
Pump cover has the function of cooling and heat preservation which can be used for pumping mediums with special requirements, pump cover with vent plug, to vent the air in pipe line or pumps before operation. Suitable dimension of sealing housing, use packing or various mechanical seals, good interchangeability, low cost of size deviation, equipped with cooling, flushing sealing liquid system.
The connection and the standard of suction and discharge flange can be varied with customer's requirements in rated pressure level and dimension.
The pump rotation direction is CW viewing from the driven end.
★ Performance Data
Flow Range： Q up to 600m3/h
Head Range： H up to 120m
Operating Pressure: P up to 50 Bar
Liquid Temperature： T up to 250°C
★ Applications
@ Petrochemical
@ Refinery
@ General industrial process
@ Water supply and treatment
@ Pipeline pressurization
@ Marine pump
