Introduction:

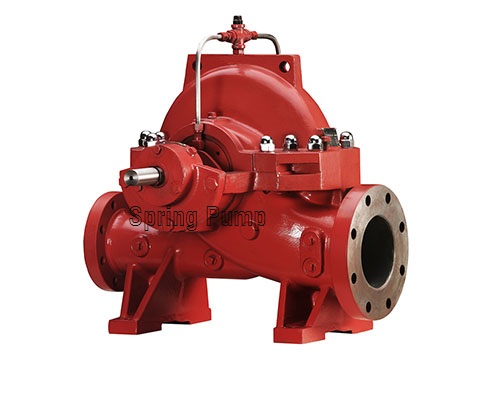

HSC horizontal
split casing fire pump is widely used in the fire hydrant and fire sprinkler
system in different industries, such high tall building, utilities, factories,
oil&gas industries, etc. The design code is referred to the ISO5199 and
performance complied to NFPA20, UL448.
Parameter Range:
Capacity: 500-10,000usgpm
Head: 8-24bar
Size: 3-16 inches
Driver type: Electric motor and diesel engine(air cooling or water cooling)
Material of Construction:
Pump casing: Cast iron,carbon steel,SS,duplex SS
Impeller: Bronze,brass,SS,duplex SS
Shaft: Alloy steel,SS,duplex SS
Shaft seal: Packing seal standard,mechanical seal optional
Bearing: Chinese famous brand,NTN/NSK,SKF,FAG
