Introduction:

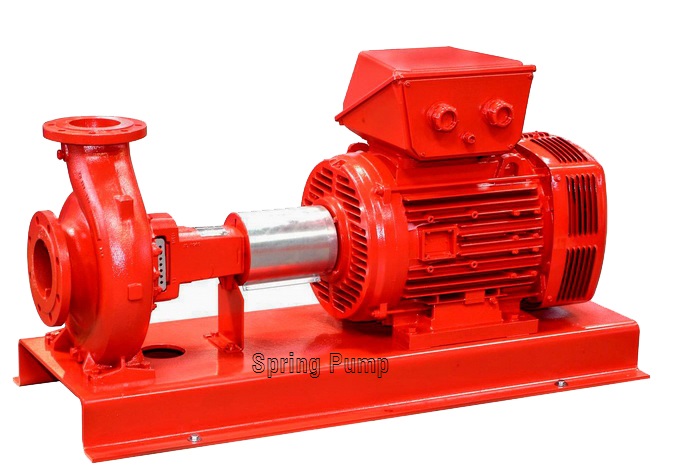

IS horizontal
end-suction fire pump is widely used in the fire hydrant and fire sprinkler
system in different industries, such high tall building, utilities, factories,
oil&gas industries, etc. The design code is referred to the ISO2858 and
DIN24256 and performance complied to NFPA20, UL448.
Parameter Range:
Capacity: 50-2500usgpm
Head: 1-15bar
Size: 2-12 inches
Driver
type: Electric motor and diesel engine
Material of Construction:
Pump casing: Cast iron,carbon steel,SS,duplex SS
Impeller: Bronze,brass,SS,duplex SS
Shaft: Alloy steel,SS,duplex SS
Shaft seal: Packing seal standard,mechanical seal optional
Bearing: Chinese famous brand,NTN/NSK,SKF,FAG
