Introduction:

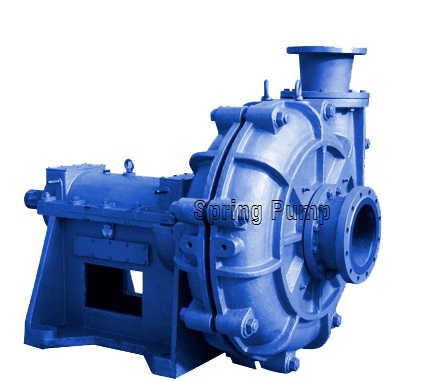

Horizontal slurry
pump is single stage single suction cantilever horizontal centrifugal pump. It
is widely used in metallurgy, mining, coal, electric power and construction
materials and other industrial department transmitting liquid that has
suspended solid particles, like concentrate, tailing, ash, coal cinder,
concrete, soil, gravel and other strong hardness, strong abrasion high
concentration slurry.
With good abrasion resistance, resistance to erosion resistance of tear, and
high elastic and chemical stability, it is used to pump blunt fine particles
with the effect better than metal.
Application:
Mining industry:
Feeding of ferrous and non-ferrous pulp and transportation of various
concentrate pulp and reject pulp, etc.
Metallurgy industry: transportation of various slimes in aluminum plant
(containing high temperature slime 106 degree Celsius) and various slurry in
steel plant.
Coal industry: coal exploitation and transportation of various rough and
cleaned coal slurry washing.
Electricity: clean out and rinse dust in electrical plant, and transportation
of various ashes & mortars, etc.
Building materials: transportation of various sand slurry.
Chemical industry: transportation of various chemical abrasive and corrosive
slimes, such as phosphate fertilizer, potash fertilizer, etc.
Environmental protection: stack gas desulfurization and transportation of
various abrasive and corrosive slimes.
Hydraulic engineering industry: dredging of pool and waterway, pumping of sand,
grit and clays, etc.
Performance Range:
Capacity:
Q=40-2200m3/h
Head: 16-116m
Power: P=2.2-800kW
Inlet diameter: DN=25-350mm
Max. Transmitted medium temperature: less than 106 degree Celsius
Max. Slurry weight concentration: less than 60%.
Max. Slurry volume concentration: less than 30%.
