Application:
Water plant
Pressure boosting
Fire fighting
Sprinkling and irrigation
General industry services
Mines
Boiler feeding
Sea water RO system
Performance range:
Capacity: Up to
1200m3/h
Head: Up to 1500m
Temperature: Up to 160℃
Speed: 2950rpm/1450rpm(50HZ),3550rpm/1750rpm(60HZ)
Standard Material:
Casing: Cast iron,ductile iron,cast steel,SS304,SS316,duplex SS
Impeller: Cast iron,ductile iron,cast steel,bronze,SS304,SS316,duplex SS
Shaft: Carbon steel,high tension alloy steel,stainless steel,duplex SS

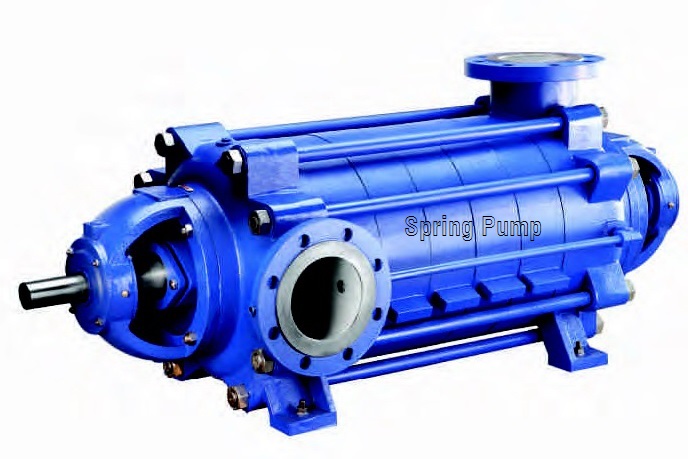

Description:
Radial split,
ring sectional casing, multi-stage pump design with modular inerstage
components. The balancing device at the pump end can effectively balance the
axial force. Shaft seals are available with packing and mechanical seals. Bearing
lubrication can be grease lubrication and oil lubrication based on the working
conditions. Various hydraulic models expand the performance range of the pumps.
