Application:
Water supply
Agricultural irrigation
Mine dewatering
Sprinkling and irrigation
Industrial wet-pit sumps
River/sea water circulation
Fire-fighting
Oil and chemical industry
Operation Condition:
Medium
temperature: less than 60 degree
Maximum content of suspended substances: 150Mg/L
Maximum diameter of solid content: 2mm
PH: 6.5~8.5
Performance Range:
Max. Capacity:
60000m3/h
Max. Head: 200m
Max. Suction depth: 200m
Speed: 2900/1450/980rpm
3500/1750/1180rpm
Material Standard:
Casing:
Cast iron, Ductile cast iron, Bronze, Stainless steel 304, 316/316L, Duplex
S.S.
Impeller: Cast iron, Bronze, Duplex S.S. , Stainless Steel 304/316/316L
Shaft: Stainless steel
Discharge head: Cast iron/ Carbon-steel

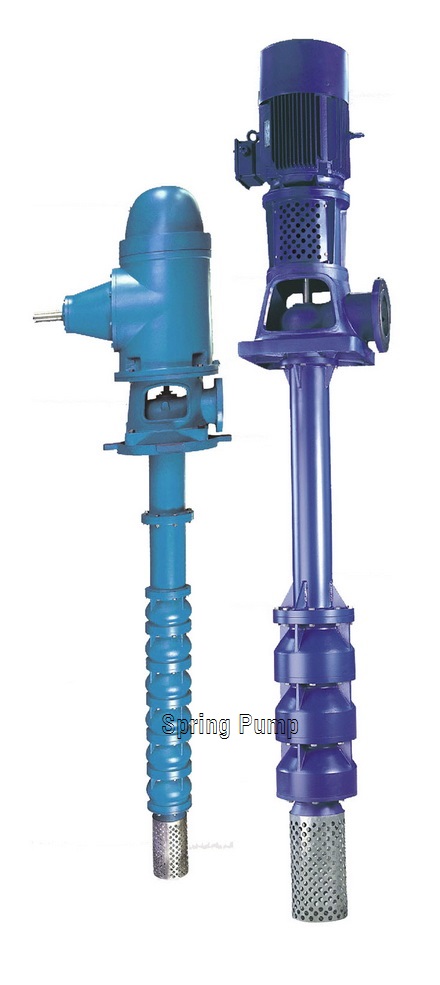

Description:
Vertical single
stage or multistage pump with mixed or axial flow impeller design, broad
hydraulic coverage provides best selection to meet specific operating
conditions. Fabricated or cast iron, surface or underground discharge head,
shaft and bearing combinations promote long life with options of open or
enclose line shaft construction. It can be driven by NEMA Standard motor or
diesel engine through right angle gear box.
