Application:
Oil fields and
Terminals
Crude oil and oil product pipeline
Water pipelines
Fluid injection
High pressure services
Sea water RO system
Performance Range:
Max. Capacity:
8000m3/h
Max. Head: 1600m
Max. Temperature: 200 degree
Speed: 2900/1450/3500/1750/1180rpm
Material Standard:
Cast iron,cast steel,SS304,SS316,duplex
SS 2205,duplex SS2507

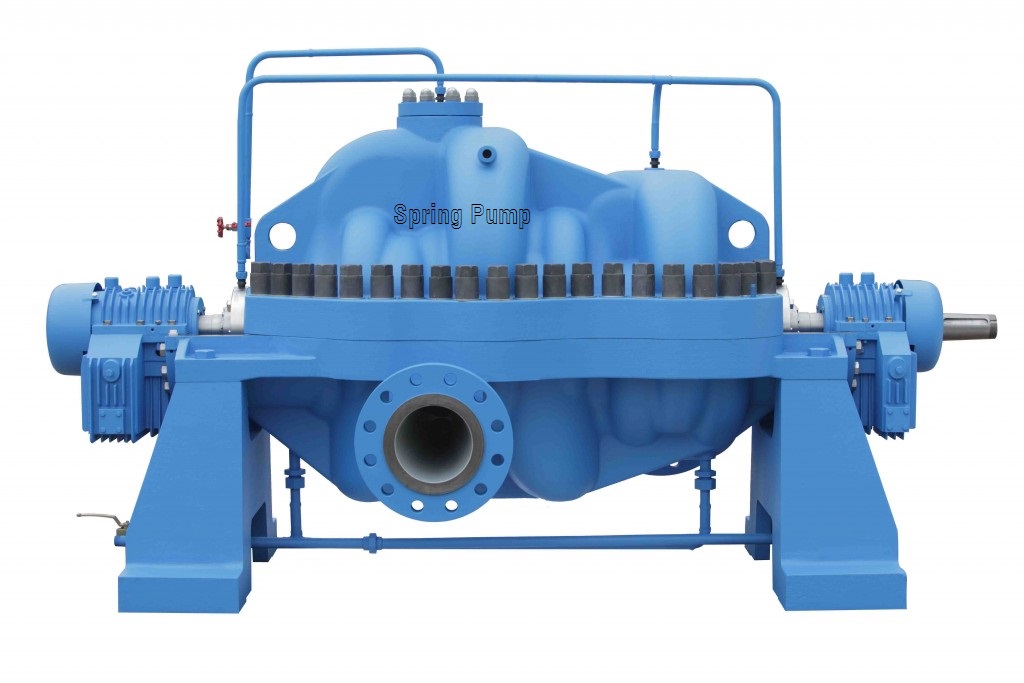

Description:
Horizontal
axially split casing, double volute multistage design. Impellers arranged in
opposed groups, it is a multistage single suction impeller pump for higher
head, first stage double suction impeller design for low NPSH required.
Removable wear rings protect the casing and impeller. The impellers are
statically and dynamically balanced. The pump complies with the API610
specification latest edition in all technical details.
Special antifriction bearings on both sided or sleeve bearings with ring or
forced-feed lubrication (axial bearing as segmental thrust bearing)
