Application:
Cooling water
Water supply/distribution
Fire protection
Metal manufacturing
Irrigation
General industrial services
Sea water
Performance Range:
Max. capacity:
20000m3/h
Max. head: 200m
Max. temperature: 105 degree
Speed: 2900/1450/980/740/580rpm/3500/1750/1180/890/710rpm
Material Standard:
Casing: cast
iron, ductile cast iron, cast steel, stainless steel, duplex S.S.
Impeller: cast iron, bronze, duplex S.S., stainless steel
Shaft: carbon steel, Cr-steel, stainless steel
Wear ring: cast iron, brass, Cr-steel
Description:

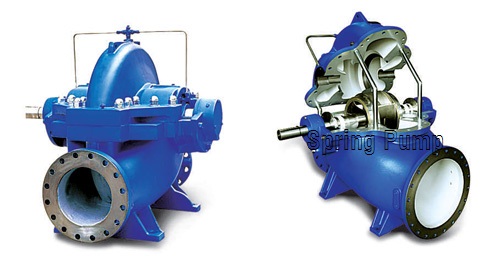

The casing is
axially split, which permits removal of the complete rotor without moving
either piping or motor.
Pumps are made with high heads have double volutes to reduce radial forces.
Replaceable wear ring besides the impeller largely protect the impeller running
smoothly without wear abrasion.
Flange is as per the standard of ISO, DIN, BS or ANSI.
The closed double suction impeller gives practically zero axial forces. Each
impeller is statically and dynamically balanced according to ISO1940.
Vertical or horizontal, soft packing or mechanical seal, grease or oil
lubricated bearing are all can be supplied as per requirement.
