Application:

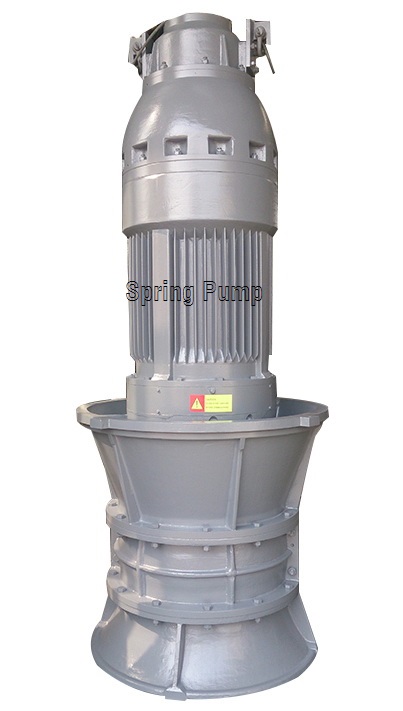

QZ/QH axial flow/mixed flow pump can be used for farmland irrigation and drainage, city rain storm station, industrial and mining dock, urban construction, drainage of power station. QZ submersible axial flow pump is suitable for the occasion for low head and large flow, and QH submersible mixed flow pump is of high efficiency and perfect cavitations performance, suitable for the occasions of large fluctuation for water level and high head. The transmission medium is the water or other liquid similar to the water on physical and chemical property, the max temperature of transmitted liquid is 40 degree.
Technical Data:
Capacity: 450m3/h~89900 m3/h
Head: 1m~20m
Power: 7.5kw~1300kw
Diameter: 350mm~2400mm
Advantage:
No need to build complicated pumping station with civil engineering structure
No need to perform axis-to-center assembly procedure on site, convenient to install.
Underground pumping station is available.
Automatic and remote control; No need to lubricate rubber bearing before pump starting.
Dual hard to hard mechanical seal to protect the leakage inside the motor casing
Heavy duty bearings arrangement to ensure the lifetime of the pump
Full protection sensors in the pump to protect the electric motor from burning down, include the leakage sensors in the mechanical seal chamber and junction box chamber, float switch inside sealing chamber, embedded overheating sensors in the stator winding
