Typical Application
Water supply system
Heat, air condition system
Booster, constant pressure water supply
Irrigation, farming
Industrial cooling, heat circulation system

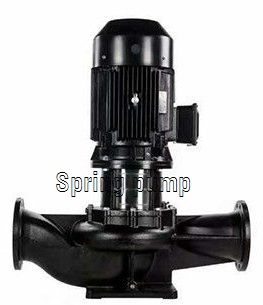

Construction: Vertical, Inline, Single-Stage, Volute Casing, Close coupled Type
Design Code: EN733/DIN24255, ISO2858
Material
Casing- Cast Iron standard, Ductile Iron, Stainless Steel, Duplex SS, optional
Impeller- Cast Iron, Bronze, Stainless Steel, Duplex SS optional
Shaft- ASTM420 standard, ASTM304, ASTM316,Duplex SS2205 optional
Shaft Seal- Mechanical Seal standard (Carbon-Ceramic/Viton standard, Caron-Sic/Viton optional) , Gland Packing optional
Operating Range
Flow Rate (Q): 4-1200m3/h
Head (H): 8-140m
Speed: 1450 or 2900 rpm (50Hz)
1750 or 3500 rpm (60Hz)
Temperature: -10℃ to 80℃
Working Pressure: 16 Bar standard, 25 Bar on request
